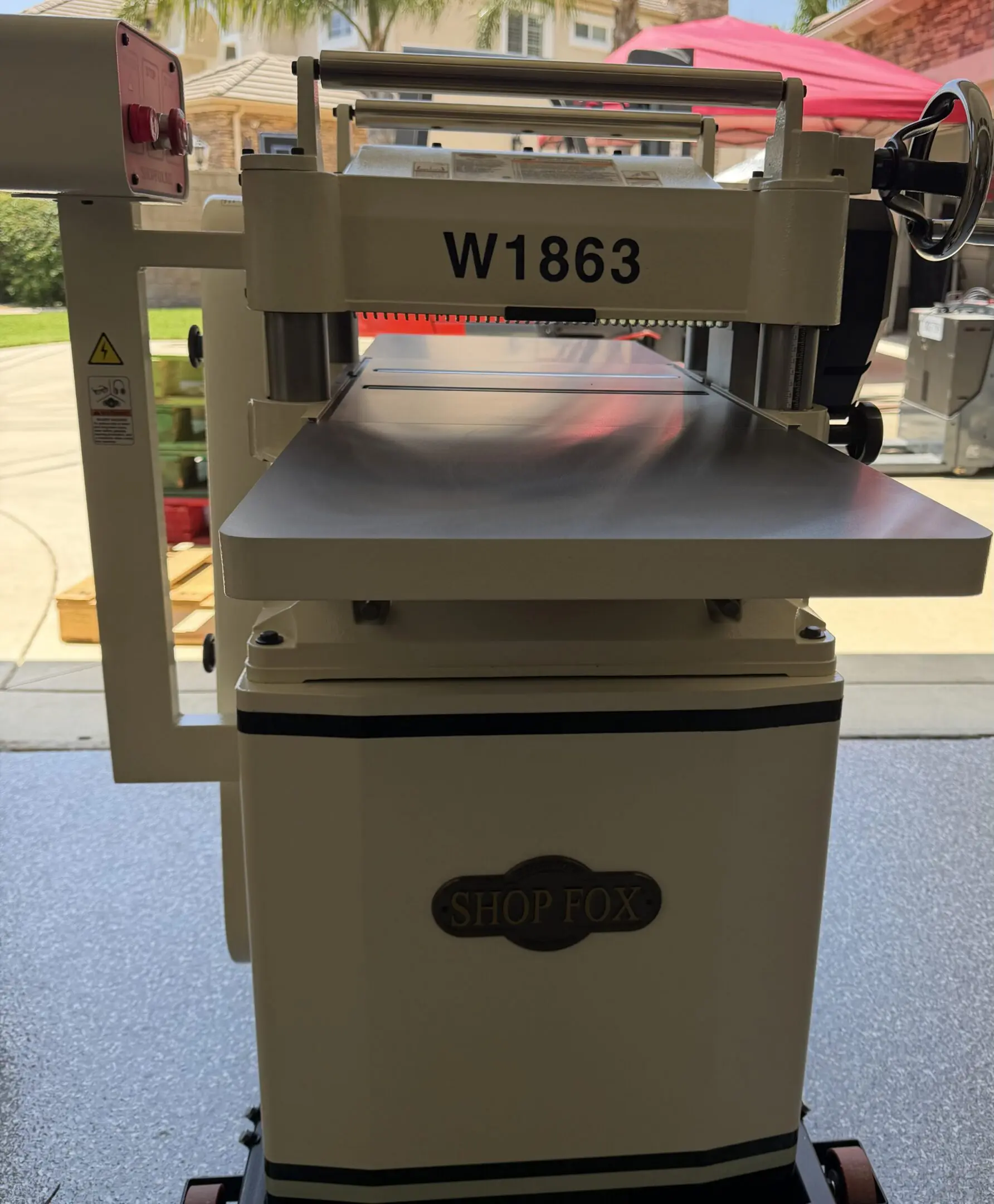

Shop Fox W1863 15” Helical Planer

Specs:

• Helical cutterhead with triple V-belt drive
• 2-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Precision-ground cast-iron table and extension wings
• Locking table
• Magnetic switch overload protection
• Ball bearing return rollers
• Depth scales in both inch and metric
• Pedestal-mounted control panel
• Motor: 3 HP, 240V, 15A, single-phase
• Maximum cutting width: 15″
• Maximum cutting height: 6″
• Minimum stock thickness: 3/16″
• Minimum stock length: 6″
• Maximum depth of cut: 1/8″
• Feed rate: 16 FPM & 20 FPM
• Cutterhead diameter: 3″
• Cutterhead inserts: 52
• Cutterhead flutes: 4
• Infeed rollers: solid serrated steel
• Outfeed rollers: knurled steel
• Table size with extension wings: 15″ x 48″
• Dust port: 4″
• Approximate shipping weight: 581 lbs.
• CSA certified

Features:

• Helical cutterhead with 52 indexable carbide inserts for superior finish
• Two-speed gearbox for versatile feed rates
• Anti-kickback fingers for enhanced safety
• Chip deflector directs chips into the dust hood
• Precision-ground cast-iron table for stable and accurate work surface
• Ball bearing return rollers for efficient production

Notes: BRAND NEW, 2025 UNUSED. $1,100 BELOW DEALER RETAIL!!
