Powermatic PF‑41 Power Feeder

Specs:

• Column Diameter: 2.28 inches
• Distance Between Rollers (adjustable): 5.23 – 5.93 – 5 inches
• Feed Rate: Variable (13, 26, 36, or 72 feet per minute)
• Height: 29.48 inches
• Length: 43.23 inches
• Maximum Roller Height (parallel to table): 8.45 inches
• Motor: 1 horsepower, 1 phase, 115 volts
• Horizontal Movement: 18.07 inches
• Vertical Movement: 9.83 inches
• Number of Speeds: 4
• Roller Size: 4-3/4 inches diameter x 2-1/4 inches wide
• Rotation: Forward/Reverse
• Swing: 360 degrees
• Width: 23.58 inches

Features:

• Roller chain and sprockets provide positive feeding for a variety of work
• Support column is fully adjustable for horizontal, vertical or angled feeder position
• Feeder body, column base and joints are cast iron for heavy duty operation
• Rollers can be changed out easily and quickly
• These rugged, heavy duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials
• The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions
• Solid cast iron construction of bodies, bases and universal joints provide stability with vibration free feeding
• 8.45 in maximum height of rollers parallel to tabletop
• 9.83 in vertical movement
• 360 deg swing
• 1 phase motor
• 5.23 – 5.93 – 5 in distance between rollers center to center
• 18.07 in horizontal movement
• Forward/reverse rotation
• 1 hp motor
• 4 speed
• 13, 36, 43, 108 range of speeds
• 2.28 in column diameter
• 4 rollers

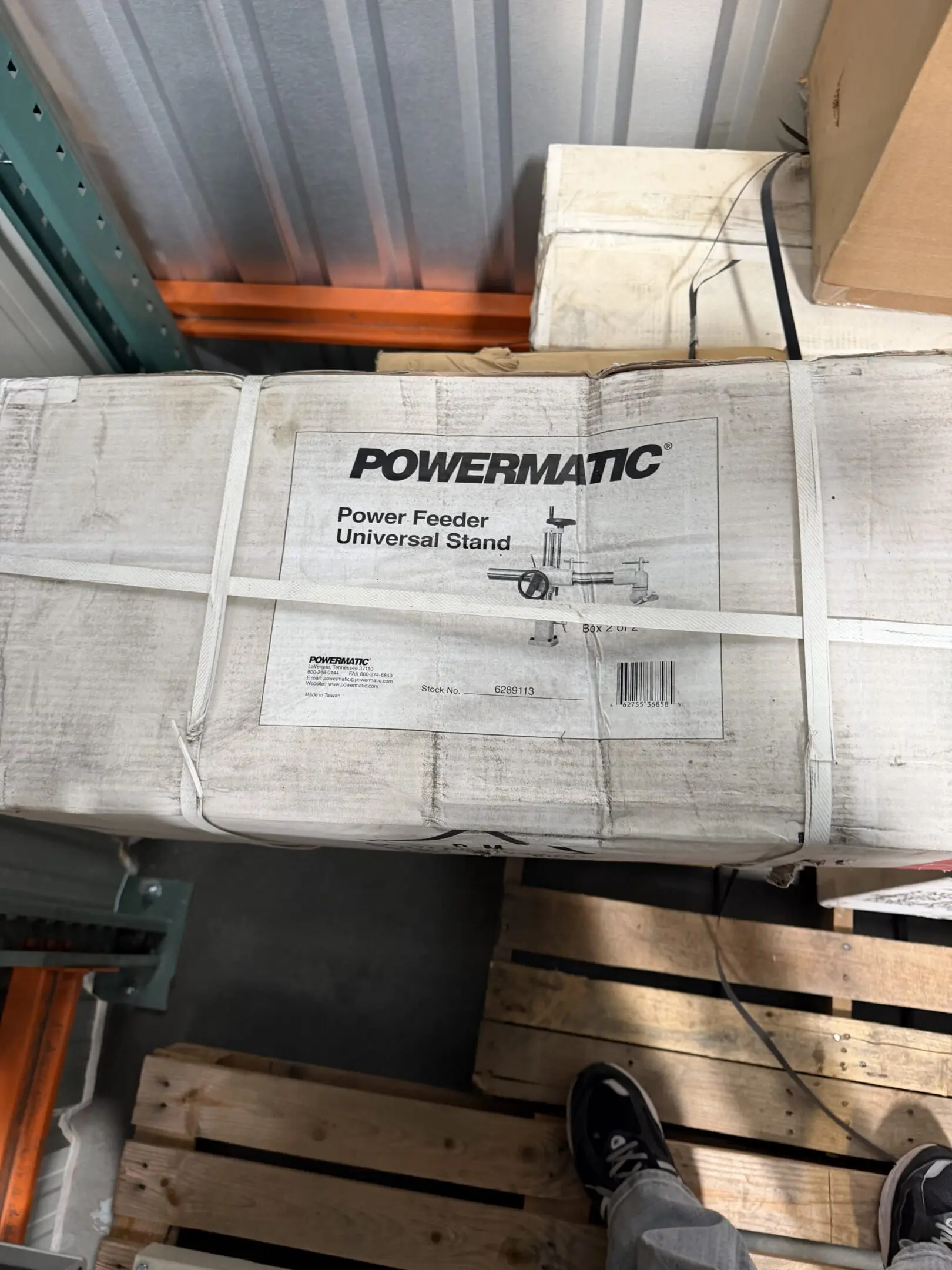

Notes: New-in-crate. Unused. Sold exactly as received. NO TAX – NO FREIGHT – NO REGRETS
